Model Whirlpool B9607^0 BUILT-IN GAS OVEN – Common Parts & Diagrams

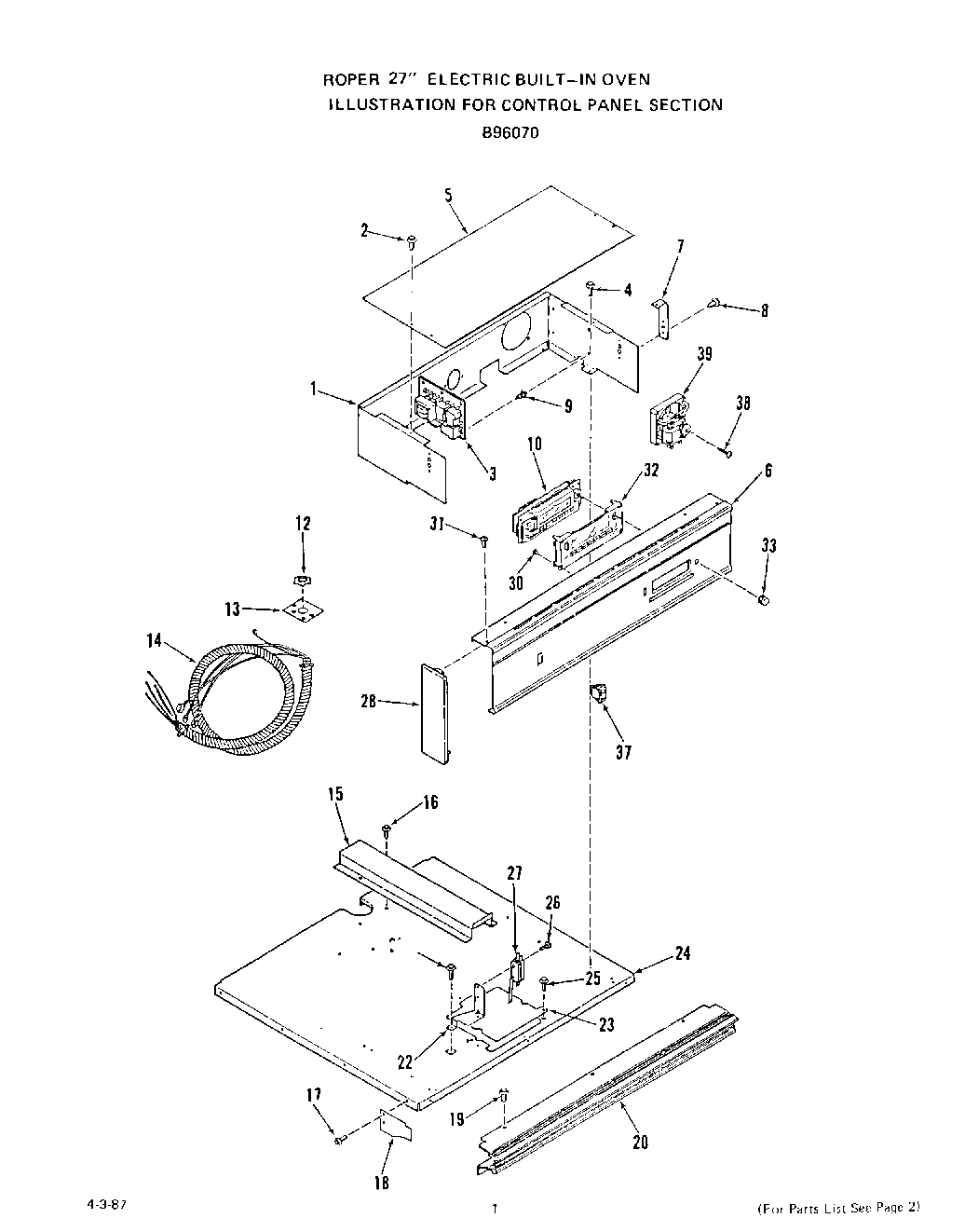

02 - CONTROL PANEL

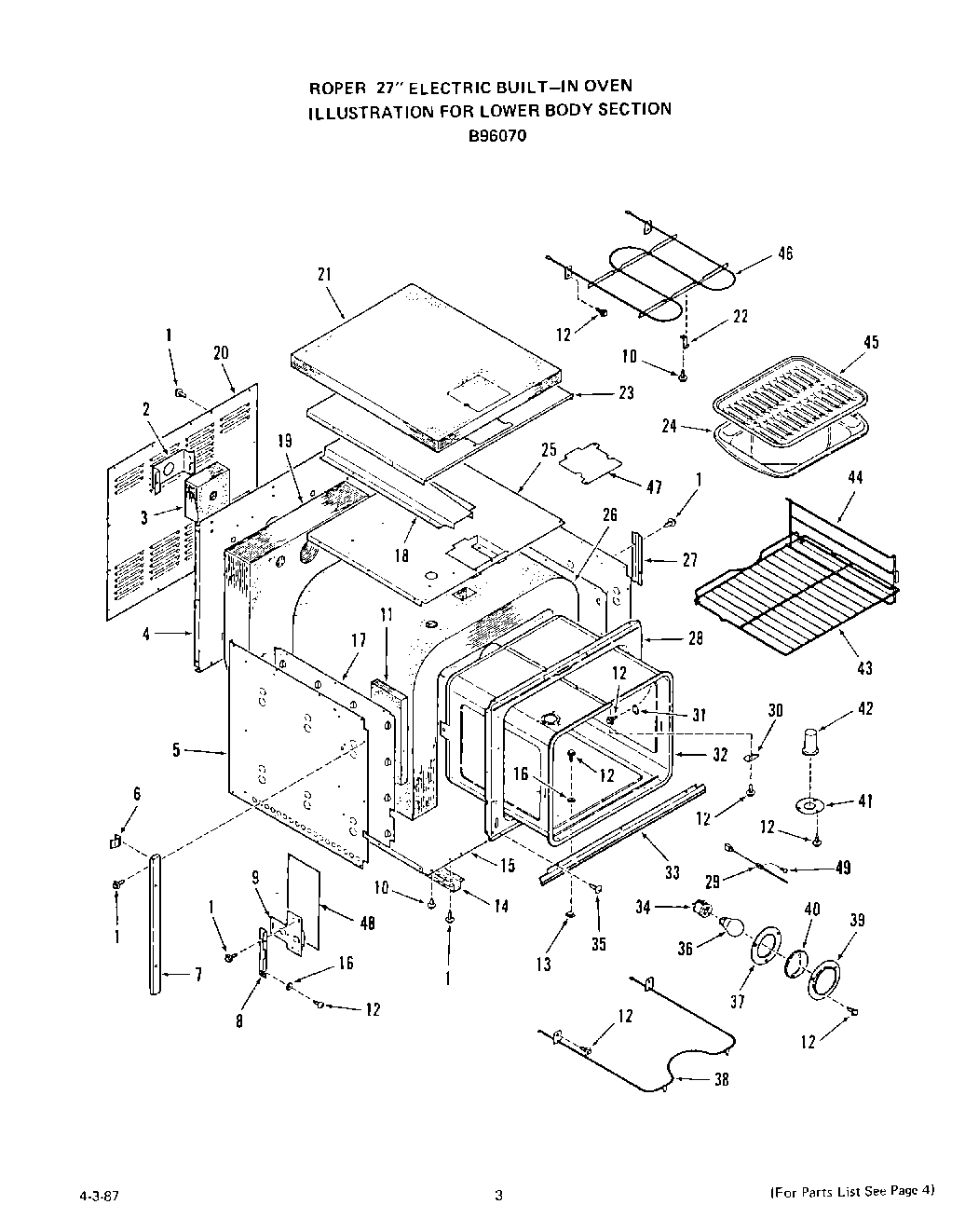

04 - LOWER BODY

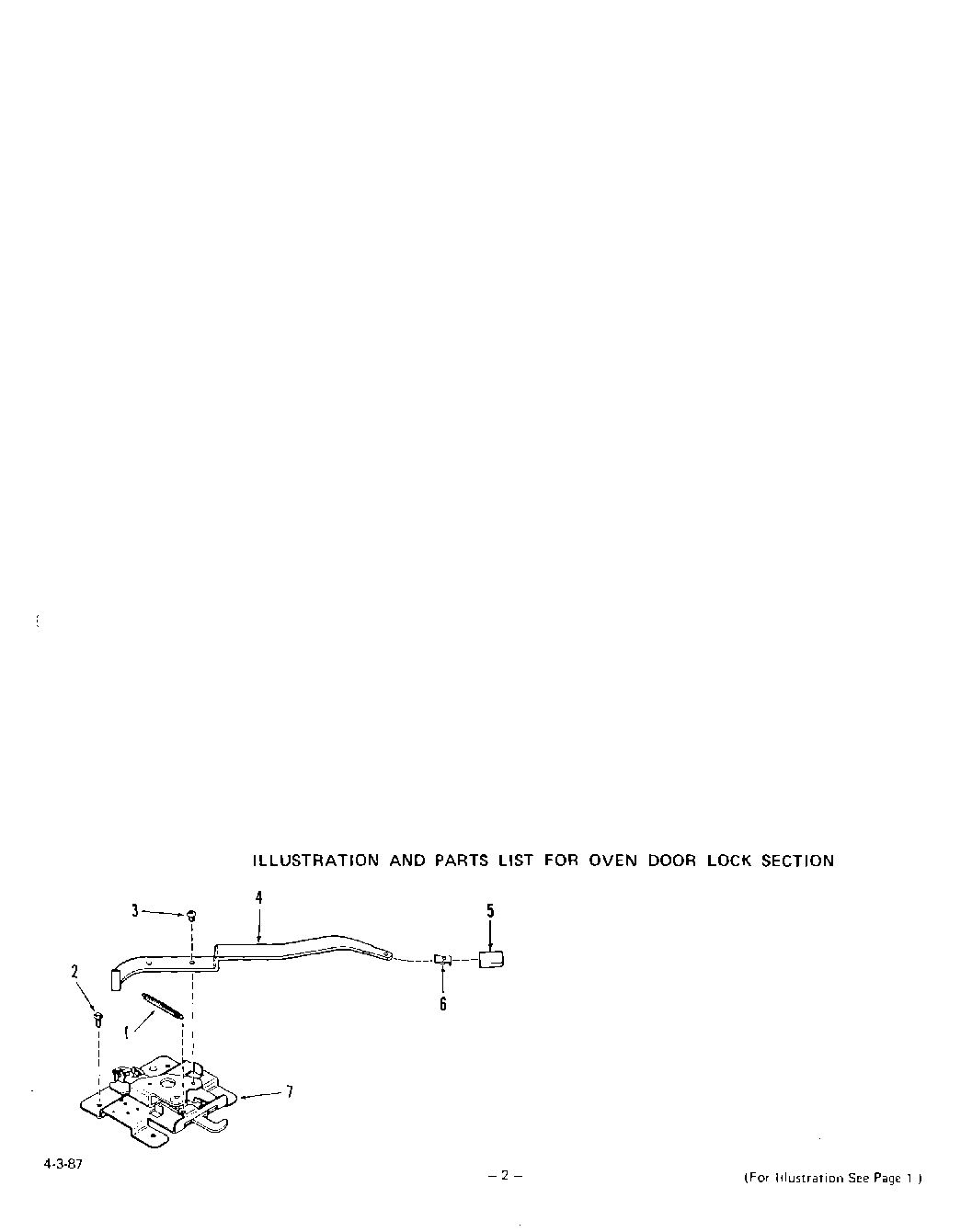

03 - OVEN DOOR LOCK

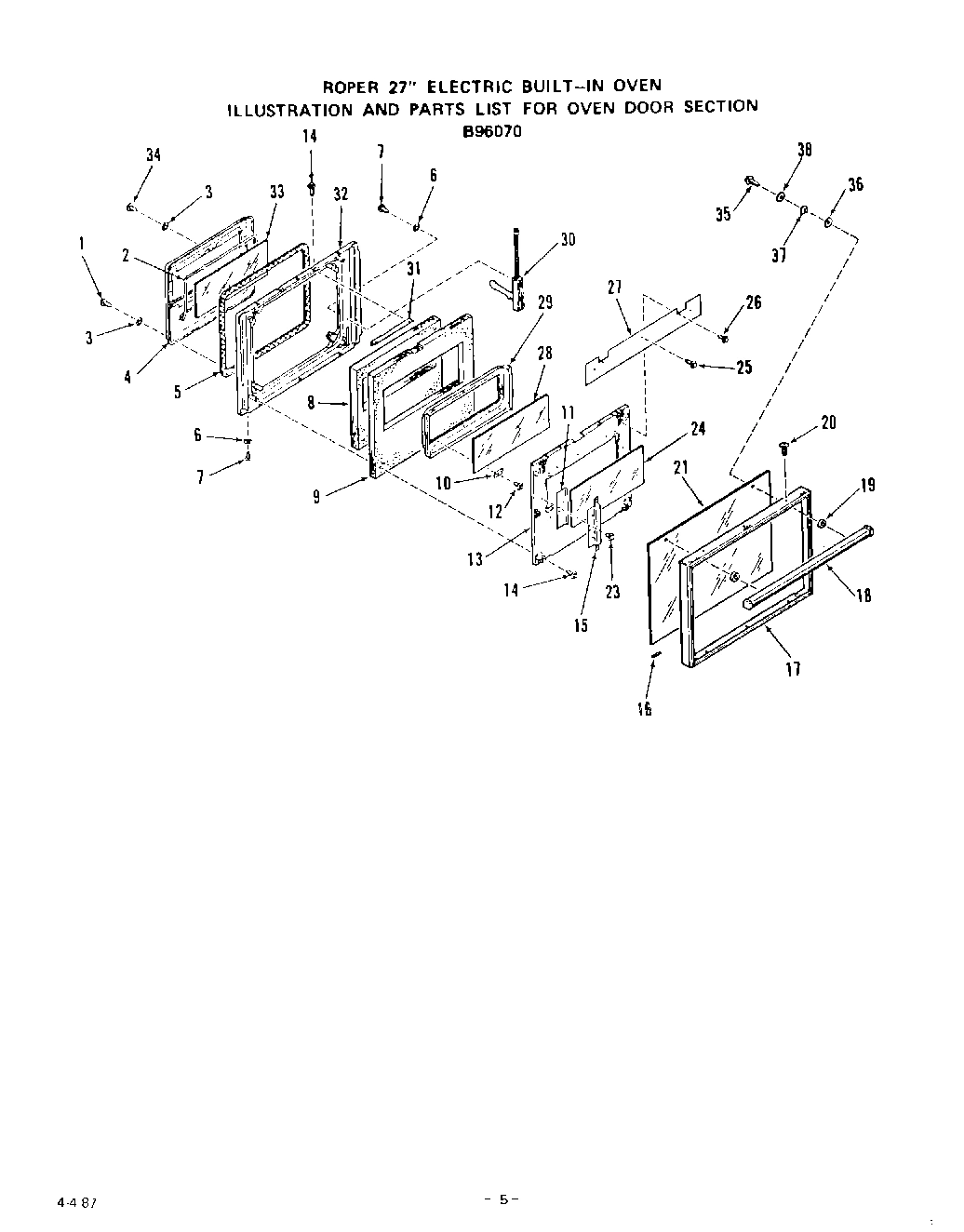

05 - OVEN DOOR , LIT/OPTIONAL

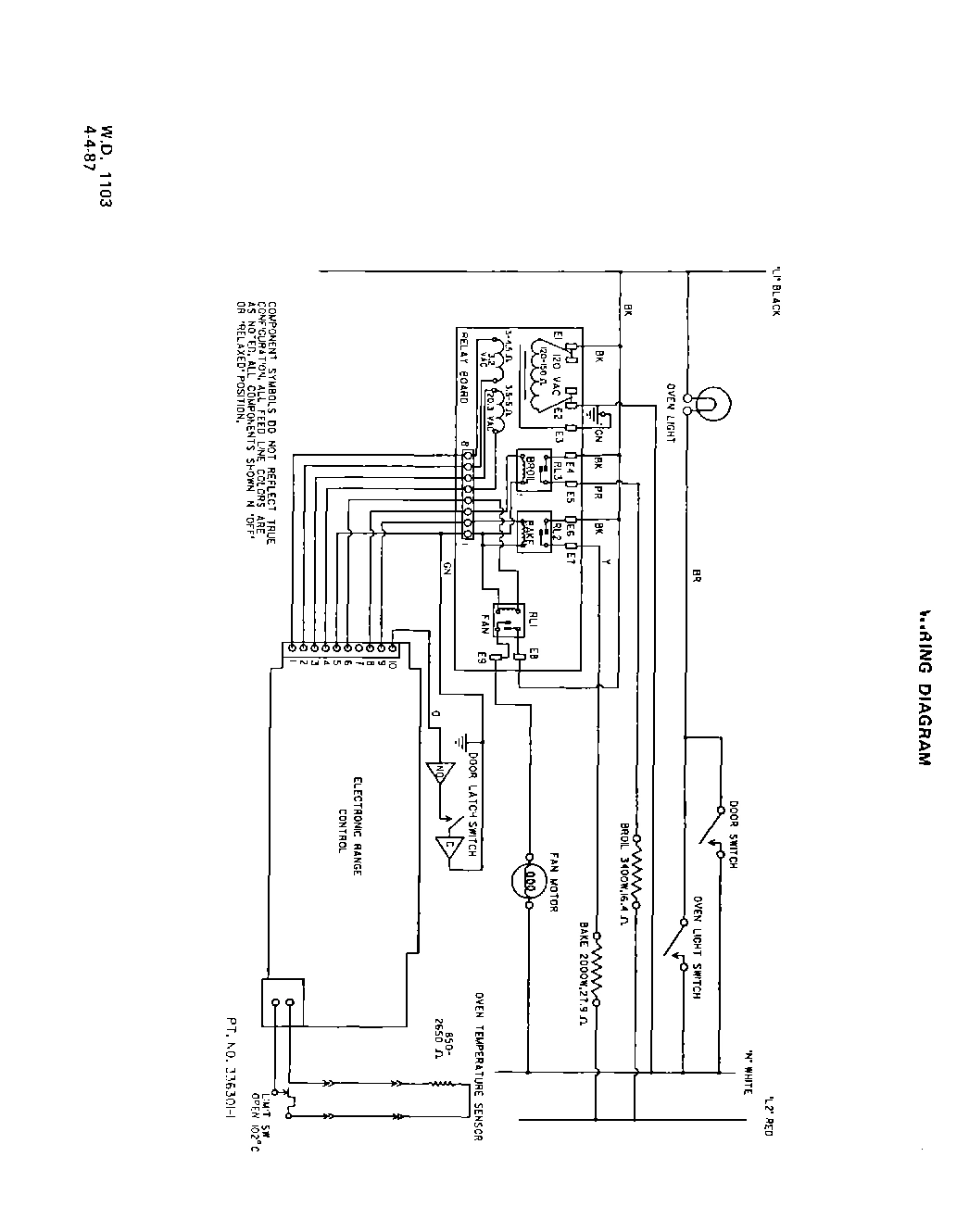

06 - WIRING DIAGRAM
Common parts from model Whirlpool B9607^0 BUILT-IN GAS OVEN
xWire Harness WPL ARI20666A6 Contact Us For Availability
1
Control Housing WPL 337413 Contact Us For Availability
1
Spring WPL 313075 Contact Us For Availability
1
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
2
Insulation Retainer-Oven Light WPL 323630 Contact Us For Availability
2
Door Seal WPL 302935 Contact Us For Availability
3
Relay Board WPL 335245 Contact Us For Availability
3
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
4
Main Back WPL 336259 Contact Us For Availability
4
Lock Handle WPL 337409 Contact Us For Availability
4
Plug-Oven Door WPL 331672 Contact Us For Availability
5
Top Cover-Control Housing WPL 337414 Contact Us For Availability
5
Left WPL 323715 Contact Us For Availability
5
Right WPL 323716 Contact Us For Availability
5
Cabinet Side WPL ARI20665A8 Contact Us For Availability
5
Knob-Lock Handle WPL 335738 Contact Us For Availability
5
Oven Door Gasket WPL 311873 Contact Us For Availability
6
Panel Control WPL 336280 Contact Us For Availability
6
Spacer (4 Req) WPL 311726 Contact Us For Availability
6
Clip-Knob WPL 335692 Contact Us For Availability
6
Washer WPL 21067 Contact Us For Availability
7
Bracket Control Panel WPL 336563 Contact Us For Availability
7
Side Trim-Lt. or Rt. WPL 336238 Contact Us For Availability
7
Oven Door Lock Assm. WPL 311869 Contact Us For Availability
7
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
8
Hinge Angle-Lt. or Rt. WPL 322611 Contact Us For Availability
8
Insulation-Oven Door Plug WPL 311872 Contact Us For Availability
9
Spacer PCB WPL 311469 Contact Us For Availability
9
Hinge Box-Lt. or Rt. WPL 322609 Contact Us For Availability
9
Insulation-Oven Door Lining WPL 311874 Contact Us For Availability
10
Clock WPL 335448 Contact Us For Availability
10
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
10
Door Glass Retainer (4 Req) WPL 312888 Contact Us For Availability
11
Insulation (Lt. or Rt.) WPL 279470 Contact Us For Availability
11
Spacer-Oven Door Glass (Lt. or Rt.) WPL 310929 Contact Us For Availability
12
Nut (For Key 14) WPL 110340 Contact Us For Availability
12
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
12
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
13
Plate (For Key 14) WPL 294983 Contact Us For Availability
13
Speed Nut 10-32 WPL 107956 Contact Us For Availability
13
Retainer-Oven Door Insulation WPL 336112 Contact Us For Availability
14
Harness Conduit Asm. WPL 336304 Contact Us For Availability
14
Bottom Channel-Lt. or Rt. WPL 328042 Contact Us For Availability
15
Wire Cover WPL 327990 Contact Us For Availability
15
Cabinet Bottom WPL 323740 Contact Us For Availability
16
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
16
Washer WPL 106462 Contact Us For Availability
16
Cushion WPL 112370 Contact Us For Availability
17
Insulation Retainer-Oven Side (lt. or Rt.) WPL 323636 Contact Us For Availability
17
Frame-Oven Door WPL 336211 Contact Us For Availability
18
Heat Shield (Lt. or Rt.) WPL 336275 Contact Us For Availability
18
Top Oven Vent Box WPL 323640 Contact Us For Availability
18
Oven Door Handle WPL 336204 Contact Us For Availability
19
Insulation-Oven Back & Bottom WPL 336287 Contact Us For Availability
19
Spacer, Door Handle WPL 107158 Contact Us For Availability
20
Trim, Control Panel WPL 337416 Contact Us For Availability
20
Cabinet Back WPL 323722 Contact Us For Availability
20
Screw 6-20x3/8`` WPL 329382 Contact Us For Availability
21
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
21
Insulation-Cabinet Top WPL 333119 Contact Us For Availability
21
Oven Door Glass-Outer WPL 336209 Contact Us For Availability
22
Bracket-Micro Switch WPL 335115 Contact Us For Availability
22
Broiler Element Support WPL 324809 Contact Us For Availability
23
Cover Plate Lock WPL 333124 Contact Us For Availability
23
Insulation Retainer-Cabinet Top WPL 333117 Contact Us For Availability
23
Screw 10ABx3/4`` WPL 69364 Contact Us For Availability
24
Cabinet Top WPL 337411 Contact Us For Availability
24
Broiler Pan WPL 331592 Contact Us For Availability
24
Oven Door Glass-Intermediate WPL 308239 Contact Us For Availability
25
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
25
Insulation Retainer-Oven Top WPL 323634 Contact Us For Availability
26
Screw 6-32x7/8`` WPL 327256 Contact Us For Availability
26
Insulation Oven Top & Sides (1 Piece) WPL 311712 Contact Us For Availability
26
Screw 6-32x1/4`` WPL 293121 Contact Us For Availability
27
Micro Switch-Lock WPL 334973 Contact Us For Availability
27
Raceway WPL 325532 Contact Us For Availability
27
Baffle-Oven Door Lining WPL 336111 Contact Us For Availability
28
Right WPL 336511 Contact Us For Availability
28
Left WPL 336512 Contact Us For Availability
28
End Cap WPL ARI20664A6 Contact Us For Availability
28
Front Frame WPL 336575 Contact Us For Availability
28
Oven Door Glass-Center WPL 296214 Contact Us For Availability
29
Sensor WPL 334300 Contact Us For Availability
29
Retainer-Oven Door Glass WPL 336442 Contact Us For Availability
30
Screw 6-32x5/16`` WPL 78153 Contact Us For Availability
30
Cover WPL 304835 Contact Us For Availability
30
Oven Door Hinge (Lt. or Rt.) WPL 331028 Contact Us For Availability
31
Screw 10-32x1/2`` WPL 321665 Contact Us For Availability
31
Cover Plate-Thermostat Bulb WPL 237762 Contact Us For Availability
32
Clock Lens WPL 334915 Contact Us For Availability
32
Oven Body WPL 336186 Contact Us For Availability
32
Oven Door Lining WPL 331682 Contact Us For Availability
33
Clock Knob WPL 334914 Contact Us For Availability
33
Lower Trim WPL 336242 Contact Us For Availability
33
Oven Door Glass-Inner WPL 312426 Contact Us For Availability
34
Holder-Oven Light Bulb WPL 87883 Contact Us For Availability
34
Screw 10ABx1 WPL 105799 Contact Us For Availability
35
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
35
Screw WPL 300864 Contact Us For Availability
36
Oven Light Bulb WPL 111257 Contact Us For Availability
36
Washer-Fiber WPL 333014 Contact Us For Availability
37
Switch WPL 334649 Contact Us For Availability
37
Gasket-Oven Light WPL 229371 Contact Us For Availability
37
Spacer WPL 333015 Contact Us For Availability
38
Screw 10-32x1`` WPL 313190 Contact Us For Availability
38
Bake Element WPL 320418 Contact Us For Availability
38
Lock Switch WPL 333040 Contact Us For Availability
38
Main WPL 336310 Contact Us For Availability
38
Sensor WPL 336312 Contact Us For Availability
38
Washer WPL 99279 Contact Us For Availability
39
Fan Asm WPL 336560 Contact Us For Availability
39
Lens Retainer-Oven Light WPL 229372 Contact Us For Availability
40
Oven Light Lens WPL 114989 Contact Us For Availability
41
Oven Vent Clamp WPL 303612 Contact Us For Availability
43
Oven Rack (2 Req) WPL 311735 Contact Us For Availability
44
Oven Rack Guide-Rt. or Lt. WPL 305350 Contact Us For Availability
45
Broiler Pan Grid WPL 326297 Contact Us For Availability
46
Broiler Element WPL 319526 Contact Us For Availability
47
Cover Plate-Lock WPL 323648 Contact Us For Availability
48
Insulation Cover WPL 114300 Contact Us For Availability
49
Screw WPL 336152 Contact Us For Availability
× ![]()
